Baseboard 7-15/16" - 1
Baseboard 7-15/16" - 1

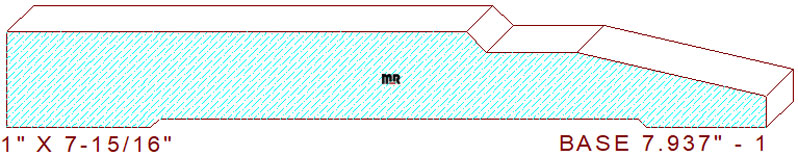

This modern 7-15/16" - 1 base moulding measures 7.937" wide by 1.000" thickness, requiring the use of five quarter lumber for milling on an industrial moulder. The innovative profile is comprised of a 4-13/16" wide flat line on the top left, attached to a 7/32" elevation changing forty-five-degree beveled line that merges with a 15/16" wide line segment in the center, connected to a 1-63/64" wide thirteen-degree angled line leaving a 21/64" thickness dimension on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.938
Depth of Cut: 0.702
Bottom Cutter Head
Width: 7.938
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$529.53
$494.78
Total:
$1024.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$564.28
$529.53
Total:
$1093.81
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$616.41
$581.66
Total:
$1198.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
