Base Moulding 8" - 15

Base Moulding 8" - 15

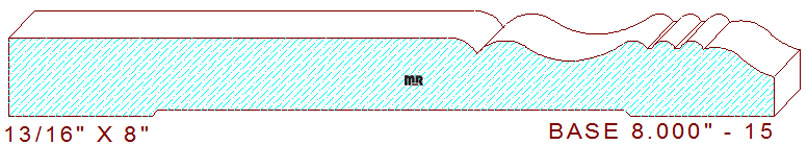

This innovative base moulding 8" - 15 measures 8.000" wide by .812" thickness. The creative profile is comprised of a 4-7/8" wide straight line with an 11/32" radius arc that transitions into a bidirectional cyma reversa, attached to two 1/8" radius beads divided by small sunk fillets, connected to a two tangent radius cyma reversa/ogee positioned at the top of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

This professionally drafted cad dxf file contains two high precision molding template designs to create cutters for this lovely baseboard detail, one for milling the entire width and the other for cutting just the profile section of the pattern. Looking for that special molding to enhance the architectural style of your current project, send us a sketch, custom moulding knife design is our specialty. Experience the beauty we can create together from your outlined drawing ideas and our vast knowledge of tooling and machinery.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 8.000" / Depth of Cut = .426" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
