Base Moulding 8" - 20

Base Moulding 8" - 20

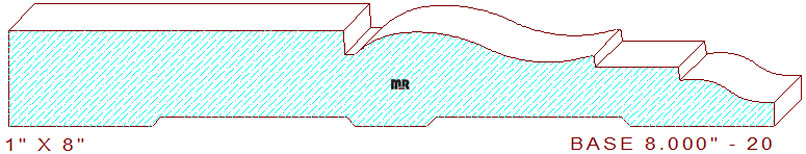

This Base Moulding 8" - 20 measures 8.000" wide by 1.000" thickness with a .750" depth of cut on the top horizontal set of moulding knives. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.

The distinctive design is comprised of a 3-1/2" wide by 1/4" deep stepped fillet, attached to a 1/8" wide sunk fillet, that transitions into a two tangent radius cyma reversa, connected to a 7/8" wide flat line flanked by small vertical lines, with a 5/8" radius arc tangent off of a 9/16" radius cove, creating another smaller ogee/cyma reversa at the top of the pattern.

We offer many exceptional grades of quality high-speed steel and carbide in various size widths for grinding and milling all our moulding profile designs. Ever wonder why moulding knives break from time to time? Please read our commentary on moulding knife breakage for possible causes and solutions to this phenomenon.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
