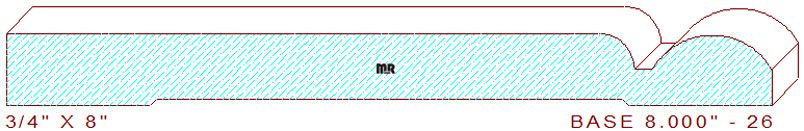

This Base Moulding 8" - 26 measures 8.000" wide by .750" thickness, the profile portion measures 1-13/16" wide, it consist of a 3/8" radius that is tangent off the flat plane, it flows into 3/16" wide a sunk fillet, and returns to a 1/14" wide arc at the top. The arc is recessed by .020" to allow for sanding after milling, keep in mind, if you do sand it , you would be sanding part of the 3/8" radius that is tangent off the flat surface.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
