Base Moulding 8" - 3

Base Moulding 8" - 3

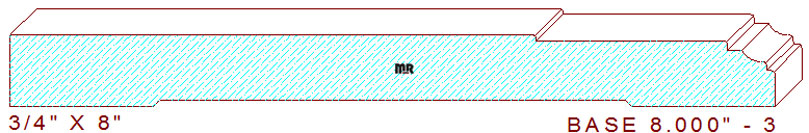

This tiered base moulding 8" - 3 measures 8.000" wide by .750" thickness. The stepped profile is comprised of a 6" wide by 1/16" deep descending line, attached to a 2" wide by 3/32" wide tiered lines, connected to a 1/2" wide cavetto consisting of a 7/32" radius cove flanked by small vertical and horizontal fillets. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

We also have a couple of matching designs to complement this lovely pattern for your review and consideration, casing 3.750 - 11 and casing 4.000" - 110. This professionally drafted cad dxf file contains two high precision template designs to create cutters for this baseboard detail, one for milling the entire width and the other foe ctiing just the profile portion of the design. From just an idea in one's mind, to reality in their home, our moulding profiles reflect the beauty and style of your imagination, let us help you design a custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 8.000" / Depth of Cut = .571" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
