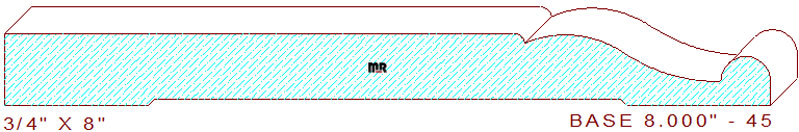

This Distinctive Base Moulding 8" - 45 measures 8.000" wide by .750" thickness, the elegant profile portion measures 2-9/16" wide and is composed of a 1/8" radius edge fillet that transitions into a graceful elevation changing cyma reversa with a .256" radius half round bead attached on the top of the pattern. The cyma reversa has intentionally been recessed below the flat plane by .015" to allow for sanding, if needed, without interfering with the profile.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
