Baseboard 8" - 75
Baseboard 8" - 75

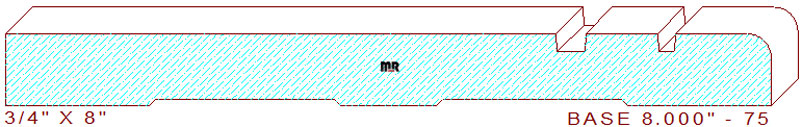

This contemporary 8" - 75 base moulding measures 8.000" width by .750" thickness, enabling the use of four-quarter lumber for milling on a commercial moulder. The modern profile contains a 5-3/4" flat line segment with a 5/16" wide by 3/16" deep dado in the top center, joined to a 3/4" broad line and a 3/16" by 3/16" groove with a one-inch horizontal line and a 1/4" rolled outer edge on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.000
Depth of Cut: 0.406
Bottom Cutter Head
Width: 8.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$498.00
$498.00
Total:
$996.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$533.00
$533.00
Total:
$1066.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$585.50
$585.50
Total:
$1171.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
