Baseboard 8" - 96
Baseboard 8" - 96

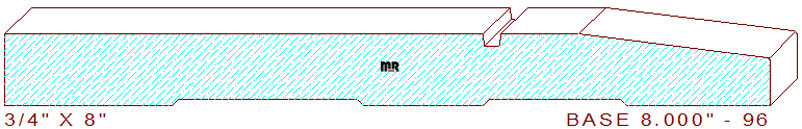

This contemporary 8" - 96 base moulding measures 8.000" width by .750" thickness, enabling the use of an 8-1/4" wide blank of four-quarter lumber for machining on an industrial moulder. The modern profile contains a five-inch wide flat line on the top center. The horizontal line connects to a 3/16" wide by 1/8" deep dado joined to a 13/16" broad flat line transitioning into a two-inch 7.125-degree chamfer with a 3/64" eased edge on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.000
Depth of Cut: 0.441
Bottom Cutter Head
Width: 8.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$498.00
$498.00
Total:
$996.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$533.00
$533.00
Total:
$1066.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$585.50
$585.50
Total:
$1171.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
