Baseboard 8-1/4"

Baseboard 8-1/4"

Baseboard 8-1/4"

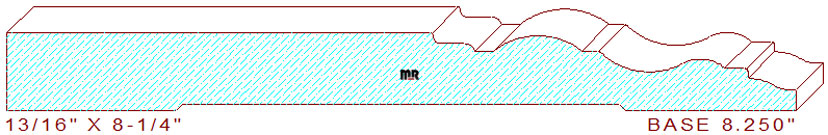

This well-designed 8-1/4" base moulding measures 8.250" wide by .812" thickness, allowing the pattern to be milled from four-quarter lumber. The beautiful profile is composed of a 4-23/32" wide straight line on the top left. It's connected to a bidirectional cong'e consisting of a 1/16" cove and a 1/8" arc, joined to a 29/32" wide shallow semicircle flanked by small flats sections. They attach to graceful cyma recta with a 1/4" wide by 7/64" step and a 1/2" wide two tangent radius ogee at the top of the design. We offer hundreds of door/window casings and chair rail designs that will efficiently harmonize with this pattern, here are just a couple of profiles you may want to review and consider, door casing 3.500" - 31 and door casing 3.500" - 126.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.250
Depth of Cut: 0.590
Bottom Cutter Head
Width: 8.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$493.00
$493.00
Total:
$986.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$529.00
$529.00
Total:
$1058.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$565.00
$565.00
Total:
$1130.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
