Base Moulding 8-1/4" - 4

Base Moulding 8-1/4" - 4

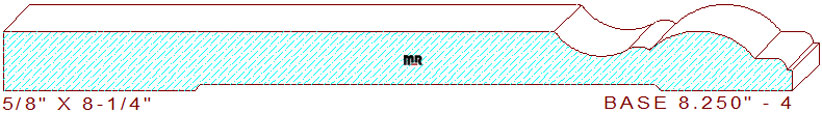

This Base Moulding 8-1/4" - 4 measures 8.250" wide by .625" thickness, the profile portion is about 2-9/16" in length and consist of a cavetto, ovolo, radiused fillet and straight fillet, this is a well proportioned baseboard for it size. There are two templates designs in this downloadable dxf file, one is at full width for a five spindle, single top cutter head, the other is for the profile only section which is designed for two top cutter heads, the first top cutter head would plane to thickness, the second top spindle would mill the profile only, this is a real cost saving design.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
