Baseboard 8-1/4" - 6
Baseboard 8-1/4" - 6

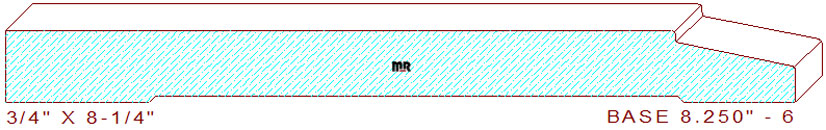

This beveled edge 8-1/4" - 6 base moulding measures 8.250" wide by .750" thickness, permitting the detail to be machined out of four-quarter lumber. The chamfered top profile is used in many churches around the western parts of the United States. The piece comprises a seven-inch wide flat area with a 1/8" vertical drop in elevation in the center. It joins an 11.31-degree downsloping angled line with a 3/64" eased edge leaving a 3/8" thickness dimension on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.250
Depth of Cut: 0.551
Bottom Cutter Head
Width: 8.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$511.00
$511.00
Total:
$1022.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$547.00
$547.00
Total:
$1094.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$601.00
$601.00
Total:
$1202.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
