Base Moulding 8-3/8" - 1

Base Moulding 8-3/8" - 1

This Base Moulding 8-3/8" - 1 measures 8.375" wide by .813" thickness with a depth of cut of .813" on the top horizontal moulding cutters. Caution, the moulding knives will come within .020" of the moulder bed plates when milling this detail, we suggest a wooden or phenolic plastic sacrificial bed plate be used for these types of milling operations. Please search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from. You may want to change the backout search parameters by a quarter of an inch or so to find a suitable size cutter to mill the bottom side of this pattern.

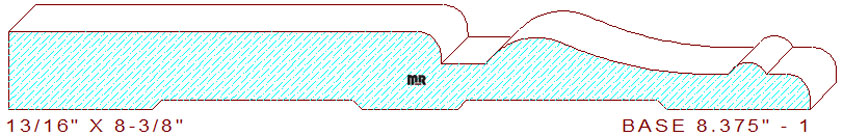

The profile is comprised of a 4-25/32" wide straight line attached to a 1/4" radius quarter round circle, joined to a 15/32" wide sunk fillet that transitions into an elongated cyma reversa, connected to a 25/64" wide bead with a small horizontal fillet and a 1/4" radius quarter round circle at the top of the pattern.

Try one of our fancy base shoe or plant on moulding designs on the bottom of the profile, find an irresistibly compelling pattern by simply changing the width search parameters. Let us assist you in shaping your home’s astonishing architectural decor, one attractive moulding profile at a time.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
