Baseboard 8-1/2" - 17
Baseboard 8-1/2" - 17

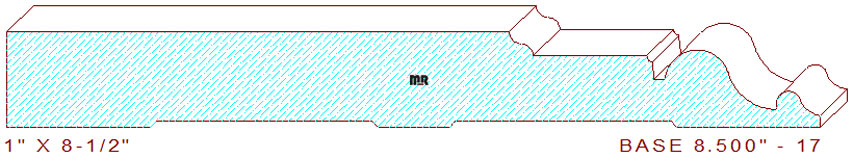

This innovative 8-1/2" - 17 base moulding measures 8.500" wide by 1.000" thick. The striking profile comprises a 5-1/4" wide flat area on the top left. It's connected to a small ogee transitioning into a 1-3/16" wide fillet with a small 1/16" radius cove in the right center. It's joined to a vertical step and a 1/8" wide sunk fillet, attached to two consecutive cyma reversa of different sizes at the top of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.500
Depth of Cut: 0.875
Bottom Cutter Head
Width: 8.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$561.00
$524.00
Total:
$1085.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$598.00
$561.00
Total:
$1159.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$653.50
$616.50
Total:
$1270.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
