Baseboard 8-1/2" - 19
Baseboard 8-1/2" - 19

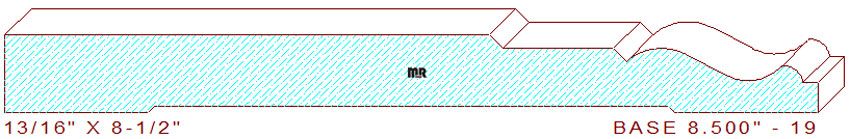

This alluring 8-1/2" - 19 base moulding measures 8.500" wide by .812" thickness. The profile portion consumes 3-7/16" of the overall width. It composes two forty-five-degree cascading chamfers connected by a 1-5/32" wide fillet. One of the angles transitions in a cyma reversa with an attached bird's beak shape. The right edge of the design retains a 5/32" wide fillet with 5/16" thickness remaining. This profile was originally designed for a 1" thickness but was reduced to save lumber cost.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.500
Depth of Cut: 0.500
Bottom Cutter Head
Width: 8.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$524.00
$524.00
Total:
$1048.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$561.00
$561.00
Total:
$1122.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$616.50
$616.50
Total:
$1233.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
