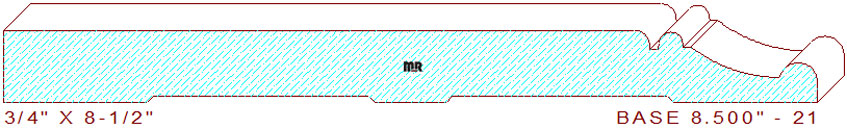

This Base Moulding 8-1/2" - 21 measures 8.500" wide by .750" thickness with a .664" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.
The innovative profile is comprised of a 6-3/4" wide straight line with an attached 5/32" radius edge, connected to a 3/32" wide by 3/16" deep sunk fillet that transitions into a 1/4" wide half round circle, attached to a small fillet and a 35/64" radius cove, with a 13/64" radius half round circle located at the top of the pattern.
We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your beautiful home. Download all our free moulding knife dxf profiles, see how easy the services we provide can increase productivity and reduce production cost.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
