Base Moulding 8-1/2" - 3

Base Moulding 8-1/2" - 3

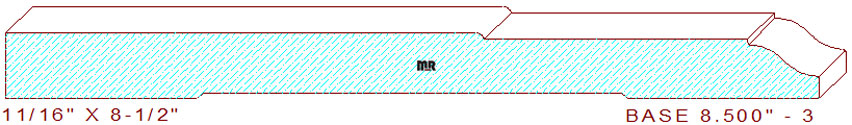

This Ogee Edge Base Moulding 8-1/2" - 3 measures 8.500" wide by .687" thickness, the conventional profile is comprised of a 5" wide radius edge fillet connected to a 2-3/4" wide by 1/16" deep stepped line attached to two tangent radiuses which forms the cyma reversa/ogee positioned at the top of the pattern. We offer many grades of exceptional quality high-speed steel and carbide for producing all these moulding profile designs.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
