Baseboard 8-1/2" - 9
Baseboard 8-1/2" - 9

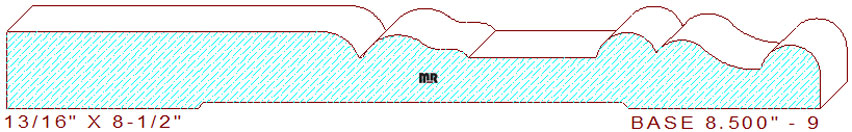

This attractive 8-1/2" - 9 base moulding measures 8.500" wide by .812" thickness. The beautiful profile is comprised of a 3-5/8" broad area with a 7/16" radius attached to a cyma reversa in the top center. It transitions into a sunk fillet connected to a half-round bead joined with another cyma reversa with another similar half-circle on the design's right edge.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.500
Depth of Cut: 0.596
Bottom Cutter Head
Width: 8.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$524.00
$524.00
Total:
$1048.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$561.00
$561.00
Total:
$1122.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$616.50
$616.50
Total:
$1233.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
