Base Moulding 8-5/8" - 19

Base Moulding 8-5/8" - 19

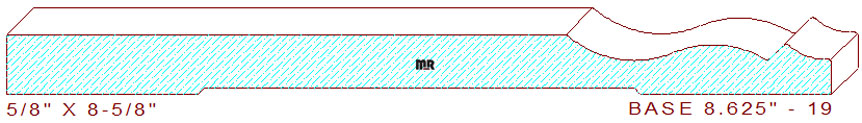

This creative baseboard moulding 8-5/8" - 19 measures 8.625" wide by .687" thickness, allowing the detail to be machined out of four quarter lumber. The artistic profile is comprised of a 5-7/8" wide straight line segment in the left center, connected to an elongated two tangent radius cyma recta joined with an up-sloping beveled line that transitions into a 17/32" radius cove on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Be sure to check out a few other profile designs for different rooms in your beautiful home or office, our moulding catalog has over a fifteen thousand profiles to select from. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom knife profiles.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.625" / Depth of Cut = .434" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
