Baseboard 8-5/8" - 20
Baseboard 8-5/8" - 20

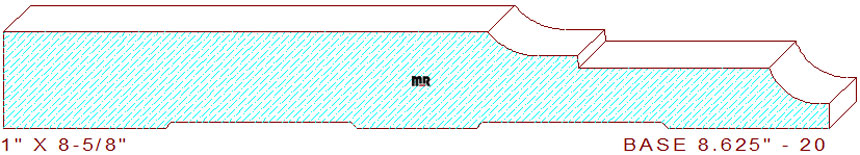

This double cove 8-5/8" - 20 base moulding measures 8.625" wide by 1.000" thickness, enabling the detail to be machined out of five quarter lumber. The beautiful profile is composed of a 5-1/16" wide straight flat line on the left. It's connected to a 15/16" wide cong'e derived from a 43/64" cove with a 1/8" vertical step in the center, merged with a 2" wide line segment and a 9/16" cove leaving a 1/4" thickness dimension on the right side of the design. We offer a stylish matching door casing detail for your review and consideration, door casing 4.500" - 47.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.625
Depth of Cut: 0.750
Bottom Cutter Head
Width: 8.625
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$568.00
$530.50
Total:
$1098.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$605.50
$568.00
Total:
$1173.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$661.75
$624.25
Total:
$1286.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
