Baseboard 8-5/8" - 27
Baseboard 8-5/8" - 27

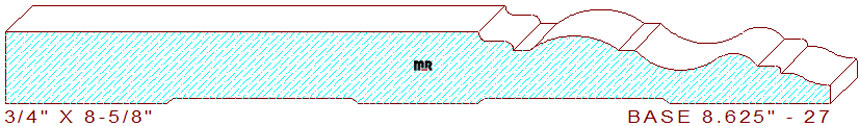

This sumptuous 8-5/8" - 27 base moulding measures 8.625" wide by .750" thickness requiring an 8-7/8" wide blank of four-quarter lumber for milling on an industrial molder. The elegant profile contains a 4-15/16" wide line segment on the top left. The central line connects to a small bidirectional congee, derived from two 3/32" semicircles merged with an 11/64" sunk fillet in the center. The remaining section consists of a 59/64" broad bead attached to a two tangent radius s-shaped curvature with a stepped fillet and small ogee on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.625
Depth of Cut: 0.714
Bottom Cutter Head
Width: 8.625
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$568.00
$530.50
Total:
$1098.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$605.50
$568.00
Total:
$1173.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$661.75
$624.25
Total:
$1286.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
