Baseboard 8-5/8" - 3

Baseboard 8-5/8" - 3

Baseboard 8-5/8" - 3

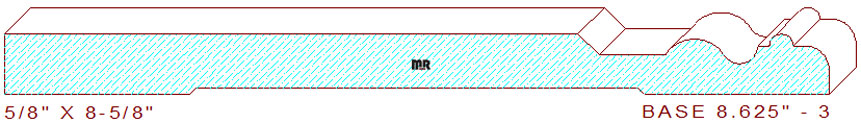

This appealing 8-5/8" - 3 base moulding measures 8.625" wide by .625" thickness, enabling the detail to be machined from four quarter lumber. The interesting profile consists of a 6" wide straight flat line in the left center, attached to a 7/32" wide forty-five-degree chamfer that transitions into a 11/16" wide sunk fillet, connected to a deep sloping two tangent radius cyma reversa, small fillet, half round circle and a 1/4" radius eased edge on the right side of the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.625
Depth of Cut: 0.500
Bottom Cutter Head
Width: 8.625
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$511.75
$511.75
Total:
$1023.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$549.25
$549.25
Total:
$1098.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$586.75
$586.75
Total:
$1173.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
