Baseboard 8-5/8" - 33
Baseboard 8-5/8" - 33

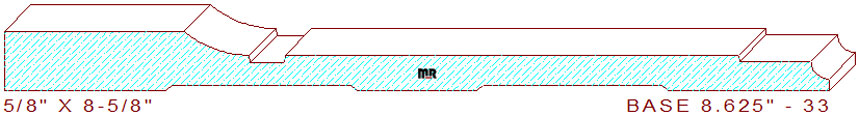

This large decorative 8-5/8" - 33 base moulding measures 8.625" width by .625" thickness allowing the use of four quarter lumber for milling on a commercial-grade molder. The distinguished pattern contains a 1-7/8" horizontal fillet and a shallow 1-1/16" cavetto on the top left. Connected to a 3/8" wide by 5/64" deep sunk fillet and a 4-3/4" broad flat line with a 1/16" vertical step in the center, attached to a 3/4" horizontal fillet and a 3/16" cove leaving a 1/8" thickness dimension on the design's right side. We offer a beautiful door casing that will complement this baseboard pattern for your review and consideration, door casing 6.000" - 16.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.625
Depth of Cut: 0.625
Bottom Cutter Head
Width: 8.625
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$530.50
$530.50
Total:
$1061.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$568.00
$568.00
Total:
$1136.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$624.25
$624.25
Total:
$1248.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
