Base Moulding 8-5/8" - 50

Base Moulding 8-5/8" - 50

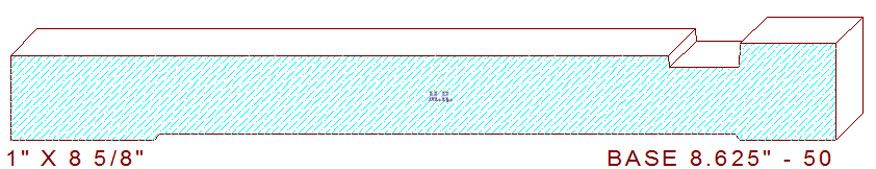

This Modern Base Moulding 8-5/8" - 50 measures 8.625" wide by 1.000" thickness and can be milled shorter in width simply by adjusting the left cutter head width dimension on the moulder. The profile is composed of a 3/4" wide by 1/4" deep dado positioned 1" from the top of the pattern, the thickness changes to 7/8" after the dado, try inlaying a piece of 5/8" - 3/4" rope moulding inside the dado to create a one of a kind moulding profile.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
