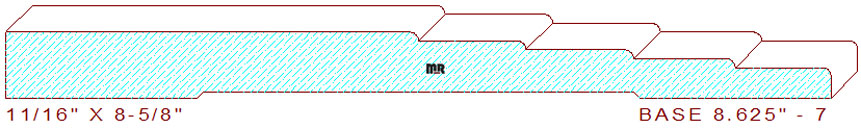

This Five Step Base Moulding 8-5/8" - 7 measures 8.625" wide by .687" thickness, the stepped detail is comprised of five elevation changes all using a 3/32" radius in the transition between the steps, the width of each step are as follows 4-5/16", 1-1/8", 1-1/8", 1-1/16", and 1" wide at 5/16" thickness the top of the profile. Utilize some our user-friendly moulding profiles, they are all professionally designed by an accomplished woodworker and former Weinig moulder/grinder field service technician.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
