Baseboard 9-3/8"
Baseboard 9-3/8"

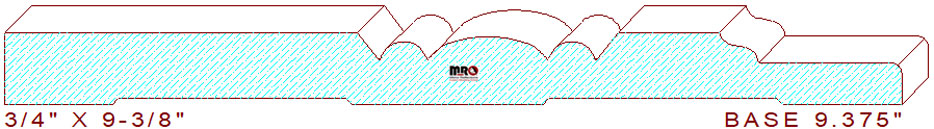

This exquisite baseboard moulding 9-3/8" measures 9.375" width by .750" thickness, needing a 9-5/8" wide blank of four-quarter lumber for machining on a commercial moulder. The creative profile comprises a 3-11/16" horizontal line segment on the top left. The flat line connects to a 2-23/32" wide area containing an elliptical-shaped convex arc flanked by a ½" wide beads joined to upsloping angled lines in the center. The remaining section contains a 1-1/16" horizontal fillet merged with a small elevation changing ogee attached to a 1-29/32" wide by 7/16" thick portion with a 1/8" rolled outer edge on the right side. We offer many beautiful door casings to complement this detail, here is one you may want to review and consider, door casing 4.875" - 2.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 9.375
Depth of Cut: 0.594
Bottom Cutter Head
Width: 9.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$569.50
$569.50
Total:
$1139.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$610.00
$610.00
Total:
$1220.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$670.75
$670.75
Total:
$1341.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
