Bed Mould 2-11/16" - 1

Bed Mould 2-11/16" - 1

Bed Mould 2-11/16" - 1

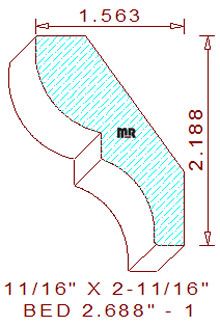

This bed mould 2-11/16" - 1 measures 2.687" width by .687" thickness. The design consists of a 7/8" radius bead on top attached to a 1/4" vertical fillet with a 13/16" radius cove and a 5/16" horizontal fillet positioned at the bottom. With the spring angles fixed at thirty-six and fifty-four degrees, the installed height becomes 2-3/16" tall with a projection of 1-9/16" full.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.303
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.619
Top Cutter Head
Width: 2.688
Depth of Cut: 0.362
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$214.90
Not Needed
Total:
$538.40
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$228.65
Not Needed
Total:
$571.15
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$242.40
Not Needed
Total:
$603.90
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
