Bed Mould 2-3/4"

Bed Mould 2-3/4"

Bed Mould 2-3/4"

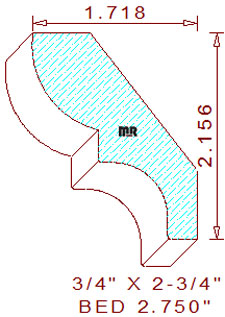

This bed mould, 2-3/4", measures 2.750" wide by .750" thick. The conventional profile comprises a 29/32" radius arc at the top, connected to an 11/32" vertical fillet in the center, attached to a 9/16" radius cavetto with a 5/16" wide horizontal fillet at the bottom of the pattern. The spring angles get fixed at thirty-eight and fifty-two degrees; search our bevels category by the degree to find a set of back bevel cutters appropriate for this popular bed moulding. These specific back angles set the installed height at 2-5/32" tall, with a projection of 1-23/32" wide.

Two high points in the design are intentionally set on the same plane. This design practice will assure excellent hold-down conditions while milling the detail on an industrial-style machine. We recommend using a felt-covered pressure shoe to eliminate any unsightly burnish mark that will be left on the radius arc from the pressure shoe element.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.369
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.572
Top Cutter Head
Width: 2.750
Depth of Cut: 0.383
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$218.00
Not Needed
Total:
$541.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$232.00
Not Needed
Total:
$574.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$246.00
Not Needed
Total:
$607.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
