Bed Mould 4-1/16"

Bed Mould 4-1/16"

Bed Mould 4-1/16"

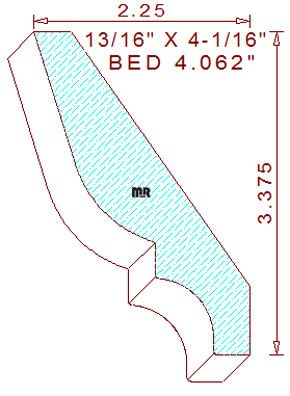

This bed mould 4-1/16" measures 4.062" wide by .812" thickness. The classic design consists of partially elongated beads attached to two 3/8" wide fillets and a cove. These specific back bevels set the installed height at 3-3/8" tall with a 2-1/4" wide projection. The spring angles are fixed at thirty-five and fifty-five degrees.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.221
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.583
Top Cutter Head
Width: 4.062
Depth of Cut: 0.558
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$283.60
Not Needed
Total:
$607.10
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$302.85
Not Needed
Total:
$645.35
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$322.10
Not Needed
Total:
$683.60
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
