Bed Mould 4-1/2"

Bed Mould 4-1/2"

Bed Mould 4-1/2"

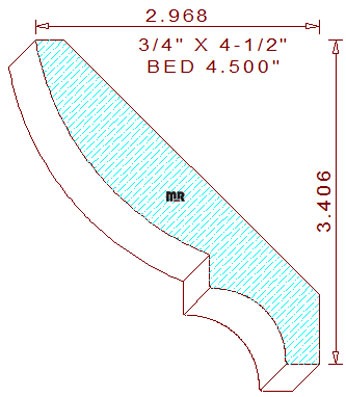

This large bed mould 4-1/2" measures 4.500" wide by .750" thickness. The standard profile consists of a 3" radius arc positioned in the upper portion connected to a 23/64" tall vertical fillet that transitions into a 3/4" radius cavetto joined to a 23/64" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-five degree which set the installed height at 3-13/32" tall and a projection of 2-31/32" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.212
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.517
Top Cutter Head
Width: 4.500
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$305.50
Not Needed
Total:
$586.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$326.50
Not Needed
Total:
$626.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$347.50
Not Needed
Total:
$666.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
