Bed Mould 6"

Bed Mould 6"

Bed Mould 6"

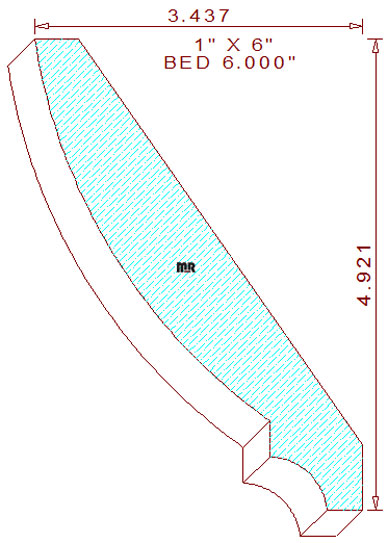

This large bed mould 6" measures 6.000" wide by 1.000" thick. The unique profile is comprised of a six-inch radius arc, connected to a 5/8" radius cove flanked by a 3/8" tall vertical fillet and a 3/8" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-five and fifty-five degrees. Search our bevels category by these degrees to find two back bevel cutters appropriate for this crown/cove design, these specific back bevels set the installed height at 4-59/64" tall with a projection of 3-7/16" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.263
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.554
Top Cutter Head
Width: 6.000
Depth of Cut: 0.695
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$407.50
Not Needed
Total:
$731.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$434.50
Not Needed
Total:
$777.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$461.50
Not Needed
Total:
$823.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
