27 Degree Back Bevel Cutter

27 Degree Back Bevel Cutter

27 Degree Back Bevel Cutter

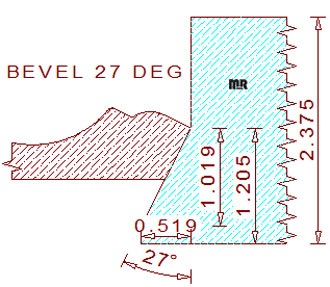

These 27 Degree Back Bevel Moulding Knives are designed to mill a twenty-seven-degree chamfer on the right vertical moulder spindle on the backside of a piece of crown, cove, or bed moulding when being milled sprung (laying horizontally flat). These knives create only half the determining factor of the final height and projection of the crown, cove, or bed moulding when installed. The other half of the equation for back cuts on these types of mouldings will be a degree that combined equals ninety or slightly more, depending on the manufacturer's tolerances.

On this moulding cutter layout the maximum depth of cut is .702", the maximum height of cut is fixed at 1.379". Every sprung moulding we design have height of cut numbers near the degree bevel on the layout papers we provide, that number must be smaller than the height number, in this case 1.379" for this knife to be able to cut the entire back bevel while milling, if not please select a larger size height bevel of the same degree, we have a few options available for your review. We purposely layout all our sprung mouldings with forty-five degree back bevels and under to be milled on the right vertical spindle, and all forty-five degree back bevels and higher to be milled on the left vertical moulder spindle. This custom design practice will save thousands of dollars in manufacturing cost over the years, as well as moulder setup time.

Please read our commentary about axial constant position for crown moulding bevels, the article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the moulder is axially calibrated.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
