37 Degree Back Bevel Cutter

37 Degree Back Bevel Cutter

37 Degree Back Bevel Cutter

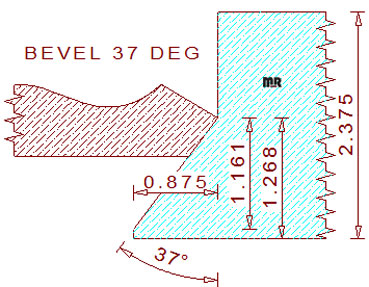

This 37 Degree Back Bevel Cutter for Crown Moulding is designed to mill a bevel on one side edge on the back of a piece of crown moulding, this knife will mill half of the determining factor of the final height and projection when the crown moulding is installed. This back-bevel cutter's maximum depth of cut is .875" with the maximum height of cut being set at 1.161" tall. All our crown moulding designs have height dimensions of the cutter listed on the paperwork, whatever that number is, it must be smaller than the height number on this degree bevel, (in this case 1.161") for this knife to be able to cut properly while milling, if not please select another different sized bevel with larger dimensions, or let us know, we would be happy to design a set of custom moulding knives for you. Please read our commentary Axial Constant Position for Crown Moulding Bevels, this article will help you dial this profile in axially on the first try when milling this detail on an industrial style moulder provided the moulder is axially calibrated correctly.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
