45 Degree Lock Miter Joint - 12

45 Degree Lock Miter Joint  - 12

45 Degree Lock Miter Joint - 12

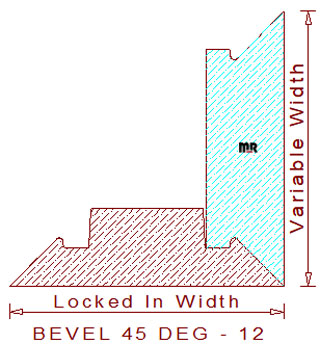

This unique lock mitre joint 45 degree - 12 was designed for stacking many square parts simultaneously. The interlocking design is milled in two identical pieces marked "random" and two marked "locked in". In the image above the part marked random is milled from the left and right vertical cutter heads and any size width within the parameters of the molder is possible. The part marked locked in is milled from the top cutter head, it is locked in to the width size needed for the woodworking project.

When assembling the parts the need for clamping is only required on two sides of the box because the hook style joint can't move once it is put under clamp pressure from the top and bottom, this makes it a great joint for stacking multiple newel boxes or table legs. Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = depends on width / Depth of Cut = .750" (top knives.)

Thickness = .750" / Depth of Cut = .505" (right blades) & .505" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
