45 Degree Double Chamfer - 15

45 Degree Double Chamfer - 15

45 Degree Double Chamfer - 15

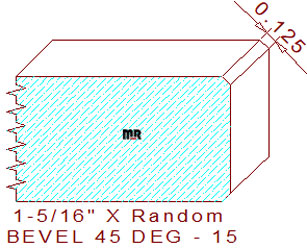

This double chamfered edge moulding 45-degree - 15 measures 1-5/16" thickness requiring any size width of six-quarter lumber for milling on a commercial moulder. The simplistic profile comprises two forty-five-degree bevels at .088" tall and wide, leaving a splay face dimension of 1/8" wide on the top and bottom edge of a piece of lumber measuring 1-5/16 thickness. Machine all four edges simultaneously by producing a set of knives for both the right and left vertical cutterheads.

Are you having issues with lumber movement or sniping on the right vertical cutter head? Perhaps proper calibration of the rebate cutter, (if you have one), or checking the knife to the fence alignment will help solve the issue.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Thickness = 1.312" / Depth of Cut = .186" (right blades) & .186" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
