45 Degree Double Chamfer - 18

45 Degree Double Chamfer - 18

45 Degree Double Chamfer - 18

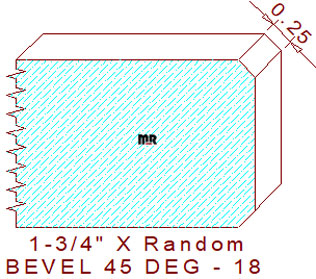

This double chamfered edge moulding 45-degree - 18 measures 1-3/4" thickness requiring any size width of eight-quarter lumber for milling on a commercial moulder. The common profile comprises two forty-five-degree bevels at .177" tall and wide, leaving a 1-25/64" tall section in the center, with two splay face dimensions of 1/4" wide on the top and bottom edge of a piece of lumber measuring 1-3/4 thickness. All four edges are machined simultaneously by producing a set of knives for both the right and left vertical cutterheads.

Are you looking for that unique moulding to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Thickness = 1.750" / Depth of Cut = .281" (right blades) & .281" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
