45 Degree Double Chamfer - 23

45 Degree Double Chamfer - 23

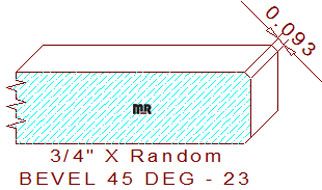

These forty-five-degree knives are capable of milling two edges of a single piece of lumber measuring 3/4" thickness, the bevels are 1/16" tall by 1/16" wide creating two splay face's of 3/32" wide as shown in the picture above.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
