45 Degree Double Chamfer - 24

45 Degree Double Chamfer - 24

45 Degree Double Chamfer - 24

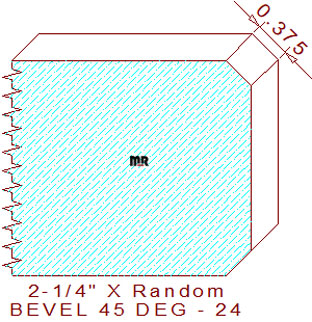

This double chamfered edge moulding 45-degree - 24 measures 2-1/4" thickness requiring any size width of ten-quarter lumber for milling on a commercial moulder. The common profile comprises two forty-five-degree bevels at .265" tall and wide, leaving a 1-23/32" tall section in the center with two splay face dimensions of 3/8" wide on the top and bottom edge of a piece of lumber measuring 2-1/4" thickness. All four edges are machined simultaneously by producing a set of knives for both the right and left vertical cutterheads.

We offer many exceptional grades of quality high-speed steel and carbide in various size widths for grinding and milling all our designs. Ever wonder why molding cutters break from time to time? Read our commentary on knife breakage for possible causes and solutions to this phenomenon.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Thickness = 1.750" / Depth of Cut = .281" (right blades) & .281" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
