45.5 Degree V-Joint - 1

45.5 Degree V-Joint - 1

45.5 Degree V-Joint - 1

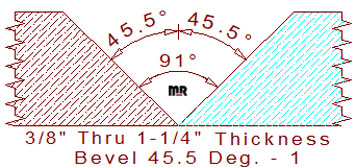

This functional bevel 45.5-degree v-fold molding knife design measures anywhere from .375" thru 1-1/4" thickness depending on how deep the machine operator sets the cutters radially on the molder. The application is for v-folding solid wood aprons on veneered sheet goods; this keeps the wood grain orientation on the corners as natural as the wood itself. Apply v-fold tape (3M #355) to the backside of the joint before milling to keep the two entities together after machining; this also makes it easier to assemble during fabrication.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing cost.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 2.750" / Depth of Cut = 1.250" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
