45.5 Degree Back Bevel Cutter - 3

45.5 Degree Back Bevel Cutter - 3

45.5 Degree Back Bevel Cutter - 3

These 45.5 degree - 3 back bevel cutters are designed to mill a forty-five and one half degree chamfer on the backside of a crown, cove, or bed moulding when milled sprung, (laying horizontally flat). These profile knives create only half the determining factor of the final height and projection of these types of mouldings when installed. The other half of the equation on these types of profiles will be a degree that combined equals ninety or slightly more, depending on the manufacturer's tolerances.

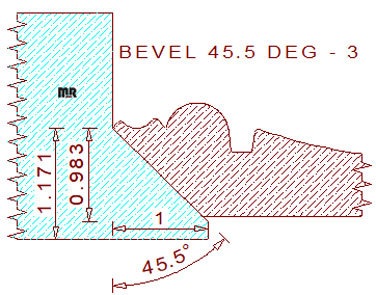

On this knife layout the maximum depth of cut is 1.000", the maximum height of cut is fixed at .983". Every sprung moulding, we design have height of cut numbers near the degree bevel on the layout papers we provide, that number must be smaller than the height number, in this equation .983" for this knife to be able to cut the entire back bevel while milling, if not, please select a more appropriate size height cutter of the same degree. We purposely layout all our sprung mouldings with forty-five-degree back bevels and under to be milled on the right vertical spindle, and all forty-five-degree back bevels and higher to be milled on the left vertical spindle. These design practices will save thousands of dollars in manufacturing cost over the years, as well as setup time.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Thickness = 1.625" / Depth of Cut = 1.000" (right blades or left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
