52.5 Degree Back Angle Cutter

52.5 Degree Back Angle Cutter

52.5 Degree Back Angle Cutter

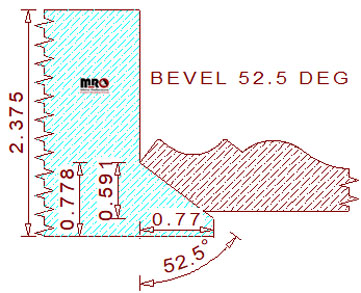

This 52.5-degree back angle cutter was designed for milling a fifty-two-point-five-degree angle on the left side cutterhead on a piece of cove, crown, or bed mould during the milling process. This knife will create only half the determining factor of the final height and projection of the milled workpieces. The other half of the equation is generally a degree, which equals ninety when combined with this angle. On this knife, the maximum depth of the cut is .770"; the full height from the zero point is .778". Every cove/crown/bed mould we design retains height numbers near the back-cut angle. That number must be smaller by .020" than the total height of the degree angle (in this case, .591") for this knife to perform adequately while milling. If it's not, please select a different-sized bevel. We design all our cove/crown/bed mould patterns with forty-five degrees and under on the machine's right cutterhead. All forty-five-degree and higher angles are milled on the left cutter head. Our unique design practices will save you thousands of dollars in manufacturing costs over the years.

The up-to-date combined high-speed steel knives & profile template prices are listed below for quoting purposes. On most of our cove/crown/bed mould designs, we utilize a full 2.375"/60mm cutter head for the back bevel angles to allow for multiple axial adjustments on a wide range of patterns.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.770
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$171.25
Not Needed
Not Needed
Total:
$171.25
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$180.75
Not Needed
Not Needed
Total:
$180.75
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$190.25
Not Needed
Not Needed
Total:
$190.25
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
