61 Degree Back Bevel Cutter

61 Degree Back Bevel Cutter

61 Degree Back Bevel Cutter

These 61 Degree Back Bevel Moulding Knives are designed to mill a sixty-one-degree chamfer on the backside of a piece of crown, cove, or bed moulding when milled sprung (laying horizontally flat) from the left vertical moulder spindle. This bevel creates only half the determining factor of the final height and projection of these types of mouldings when installed. The other half of the equation for back cuts on these styles of mouldings will be a degree that combined equals ninety or slightly more, depending on the manufacturer's allowed tolerances.

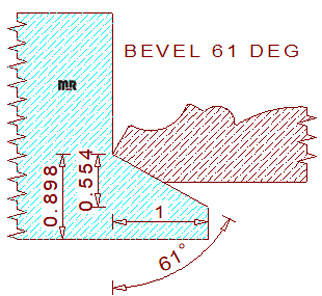

On this moulding cutter layout the maximum depth of cut is 1.000", the maximum height of cut is fixed at .554". Every sprung moulding we design have height of cut numbers near the degree bevel on the layout papers we provide with the acrylic moulding template, that number must be smaller than the height number, in this equation .554" for this knife to be able to cut the entire back bevel while milling, if not, please select a larger size height bevel of the same degree. We purposely layout all our sprung mouldings with forty-five-degree back bevels and under to be milled on the right vertical spindle, and all forty-five-degree back bevels and higher to be milled on the left vertical moulder spindle. Our custom design practice will save thousands of dollars in manufacturing cost over the years, as well as moulder setup time.

Try one of our 125% concentration ultimate borazon grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle, will create a superior micro edge on all your high-speed steel moulding knives. Here is an article to help you understand how to align a borazon wheel to axial constant position on a Weinig R 960 profile knife grinder. During the machining process the moulding knives will be capable of milling some of the finest quality architectural mouldings you have ever produced.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
