Floor/Shoe Rail 2-3/4"
Floor/Shoe Rail 2-3/4"

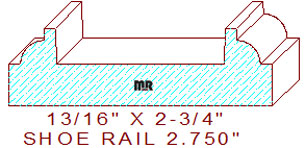

This decorative 2-3/4" floor/shoe rail measures 2.750" wide by .812" thickness. The beaded edge profile is comprised of a 1-3/4" wide by 3/8" deep dado in the center for balusters, connected to a 1/8" broad horizontal line that transitions into a 1/4" radius ovolo attached to another 1/8" broad horizontal line on each side edge of the design. All fillers for between the balusters can be found in our plant on / applied moulding category, use 1.750" dimension in both the minimum and maximum boxes provided. Browse our handrail category to find a beautiful pattern that will complement this lovely pattern.
Need this profile template and a set of moulding knives quickly? We can generally have these cutters ground in any of our premium-quality high-speed steels or carbide and shipped within 24 hours. We have artistic profiles from several different architectural eras; there are thousands of compelling designs to help match your creative style.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.750
Depth of Cut: 0.375
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$225.00
Not Needed
Total:
$225.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$239.00
Not Needed
Total:
$239.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$260.00
Not Needed
Total:
$260.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
