Floor/Shoe Rail 2-3/4" - 1
Floor/Shoe Rail 2-3/4" - 1

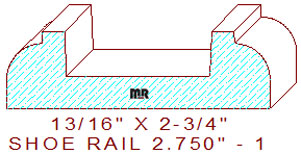

This modern 2-3/4" - 1 floor/shoe rail measures 2.750" wide by .812" thickness. The rounded edge profile is comprised of a 1-1/2" wide by 15/32" deep dado in the center for balusters, connected to a 1/4" broad line that transitions into a 1/8" tall vertical line with a 3/8" quarter circle on each side edge of the design. All fillers for between the balusters can be found in our plant on / applied moulding category, use 1.500" dimension in both the minimum and maximum boxes provided. Browse our handrail category to find a beautiful pattern that will complement this contemporary pattern.
Looking for that special moulding to enhance the architectural style of your current project? Please send us a sketch. Custom design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.750
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$226.00
Not Needed
Total:
$226.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$240.00
Not Needed
Total:
$240.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$261.00
Not Needed
Total:
$261.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
