Floor/Shoe Rail Moulding 3" - 1

Floor/Shoe Rail Moulding 3" - 1

Floor/Shoe Rail Moulding 3" - 1

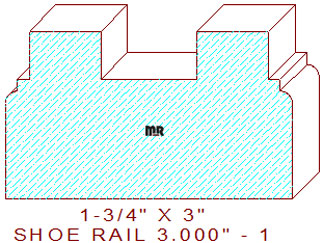

This large floor/shoe rail moulding 3" - 1 measures 3.000" wide by 1-3/4" thickness. The attractive profile is comprised of a 1" wide by 1/2" deep dado in the center for balusters, flanked by 3/4" wide horizontal lines. The sides consists of a 1-1/8" tall vertical line with a 1/8" eased edge, attached to a 1/8" wide by 1/8" tall stepped lines with a 1/2" vertical line that intersects with the top portion of the design. Browse our handrail category, find a beautiful pattern to complement this detail, we have hundreds to choose from.

Need some supplies for your moulder? Choose any of our quality high speed knife steel or premium carbide, we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your moulder and tool grinding room.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here.

Width = 3.000" / Depth of Cut = .500" (top knives).

Thickness = 1.750" / Depth of Cut = .250" (right blades) & .250" (left knives), only one template is needed for the side blades.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
