Floor/Shoe Rail Moulding 3-1/8"

Floor/Shoe Rail Moulding 3-1/8"

Floor/Shoe Rail Moulding 3-1/8"

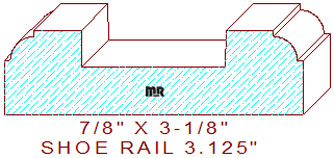

This good-looking floor/shoe rail moulding 3-1/8" measures 3.125" wide by .875" thickness. The quarter round edge profile is comprised of a 1-1/2" wide by 3/8" deep dado in the center for balusters, connected to a 1/2" wide horizontal line with a 1/16" step that transitions into a 1/4" radius ovolo attached to another 1/16" wide horizontal line on each side edge of the design. All fillers for between the balusters can be found in our plant on / applied moulding category, use 1.500" dimension in both the minimum and maximum boxes provided. Browse our handrail category to find a beautiful design that will complement this lovely pattern.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes use the calculator below; we have added only the important dimensions. A brief detailed explanation on how to use the calculator is located here.

Width = 3.125" / Depth of Cut = .375" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
