6006 Shoe Rail 3-3/16"
6006 Shoe Rail 3-3/16"

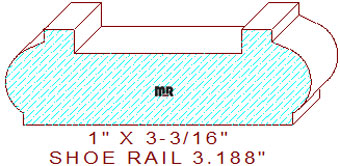

This lovely 6006 shoe rail, 3-3/16", measures 3.188" wide by 1" thick. The classy profile comprises a thumbnail-shaped arc flanked by 1/8" tall vertical lines on each side edge. The top consists of a 1-3/4" wide by 1/4" deep dado for balusters flanked by a 5/16" wide raised fillet. All section fillers that go between the balusters can be found in our plant on/applied moulding category, use 1.750" dimension in both the minimum and maximum boxes provided. We also have a smaller version of this detail for receiving 1-1/4" wide balusters, you may want to review shoe rail 2.750" - 2. Review some of our elegant handrails, we have a few choices in this width size for your consideration.
We're delighted you found a functional profile that interest you, please consider all the other things we can do for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry, read some of our informational articles. They will help you get started with the basics. One thing we have in common is our passion for excellence and our quest to be paramount artisans for all our clients.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.000
Depth of Cut: 0.406
Left Cutter Head
Thickness: 1.000
Depth of Cut: 0.406
Top Cutter Head
Width: 3.188
Depth of Cut: 0.250
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$135.00
$91.00
(Template not needed)
$248.78
Not Needed
Total:
$474.78
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$142.00
$98.00
(Template not needed)
$264.53
Not Needed
Total:
$504.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$152.50
$108.50
(Template not needed)
$288.16
Not Needed
Total:
$549.16
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
