Floor/Shoe Rail 3-3/8" - 1
Floor/Shoe Rail 3-3/8" - 1

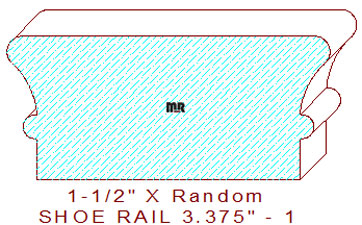

This beautiful 3-3/8" - 1 floor/shoe rail measures 1.500" in thickness; the width can be milled to any desired size by simply adjusting the left vertical cutter head's radial position. The profile consists of a cyma reversa edge on top, connected to a 1/4" wide half-round bead, and a 27/64" vertical line at the bottom. An optional dado could be milled into the top to accommodate a variety of baluster or balustrade sizes. Browse our handrails to find a beautiful pattern to complement this floor rail detail.
Are you a millwork manufacturer? If so, please add your company to our millwork suppliers map; this helpful resource will help potential customers experience the craftsmanship of your creative woodworking shop. While you're at it, feel free to connect our moulding catalog to your website; you can't sell what people don’t know you have.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.319
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.319
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$160.00
$117.00
(Template not needed)
Not Needed
Not Needed
Total:
$277.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
$126.00
(Template not needed)
Not Needed
Not Needed
Total:
$295.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
$139.50
(Template not needed)
Not Needed
Not Needed
Total:
$322.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
