Floor/Shoe Rail Moulding 4-1/4"

Floor/Shoe Rail Moulding 4-1/4"

Floor/Shoe Rail Moulding 4-1/4"

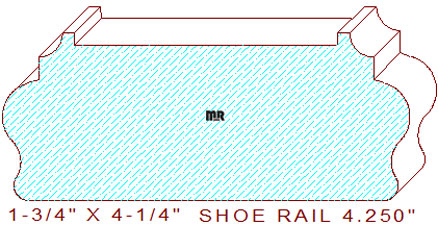

This attractive floor/shoe rail moulding 4-1/4" measures 4.250" wide by 1.750" thickness. The beautiful profile is comprised of a 2-3/4" wide by 1/8" deep dado in the center for balusters flanked by a 1-1/8" wide horizontal line. The symmetrical sides consist of a 1/4" cove attached to a 15/64" tall vertical line that transitions into a bidirectional cyma reversa on the bottom portion of the design. Browse our handrail category to find a beautiful pattern to compliment this floor rail detail. All fillers for between the balusters can be found in our plant on / applied moulding category, use 2.750" dimension in both the minimum and maximum boxes provided.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map. This helpful resource will help potential customers experience the craftsmanship of your creative woodworking shop. While you're at it, feel free to connect our moulding catalog to your website, you can't offer clients patterns they don’t know you have available.

For knife quoting purposes use the calculator below; we have added only the important dimensions; determine the cutters you need. A brief detailed explanation on how to use the calculator is located here.

Width = 4.250" / Depth of Cut = .125" (top knives).

Thickness = 1.750" / Depth of Cut = .625" (right blades) & .625" (left knives), only one templates is required to produce the side blades.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
