Brickmould 3"
Brickmould 3"

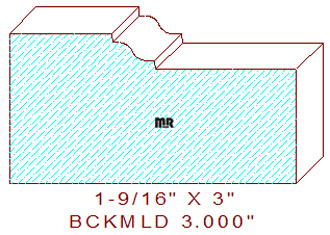

Brick moulding is a style of exterior casing/trim installed around the perimeter of windows and doors. Even though named brickmould, it is generally milled/constructed from wood, vinyl, or composite materials, but never from brick. The name could have derived from being installed around masonry, natural stone, or stucco siding installed on a home. We have thousands of available profiles that associate themselves with skilled woodworkers, architects, and interior designers; find yours now. This brickmould 3" measures 3.000" wide by 1.563" thickness. The profile is comprised of a 1-5/64" wide straight fillet attached to elevation-changing cyma reversa consisting of two 5/32" tangent radiuses that connect to a 1-15/32" wide horizontal fillet at 1-3/16" thickness.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.375
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$238.00
Not Needed
Total:
$238.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$253.00
Not Needed
Total:
$253.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.50
Not Needed
Total:
$275.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
