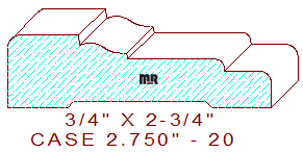

This Casing Moulding 2-3/4" – 20 measures 2.750" wide, by .750" thickness, with a .656" depth of cut on the top horizontal moulding cutters. Please search our backout category for a suitable relief cut for this detail, we have many available options to choose from.
The profile is comprised of a 3/4" wide horizontal fillet with a 1/8" radius edge, attached to a cyma reversa flanked by small vertical fillets, connected to two different size width stepped fillets, one with a 3/32" radius edge, and the other with a 1/8" radius eased edge positioned on the thin side of the pattern.
Please read our commentary, Moulder Pressure Shoe – Custom Made, this helpful step by step article will help you mill this profile to perfection on any brand of industrial style moulder machinery.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
